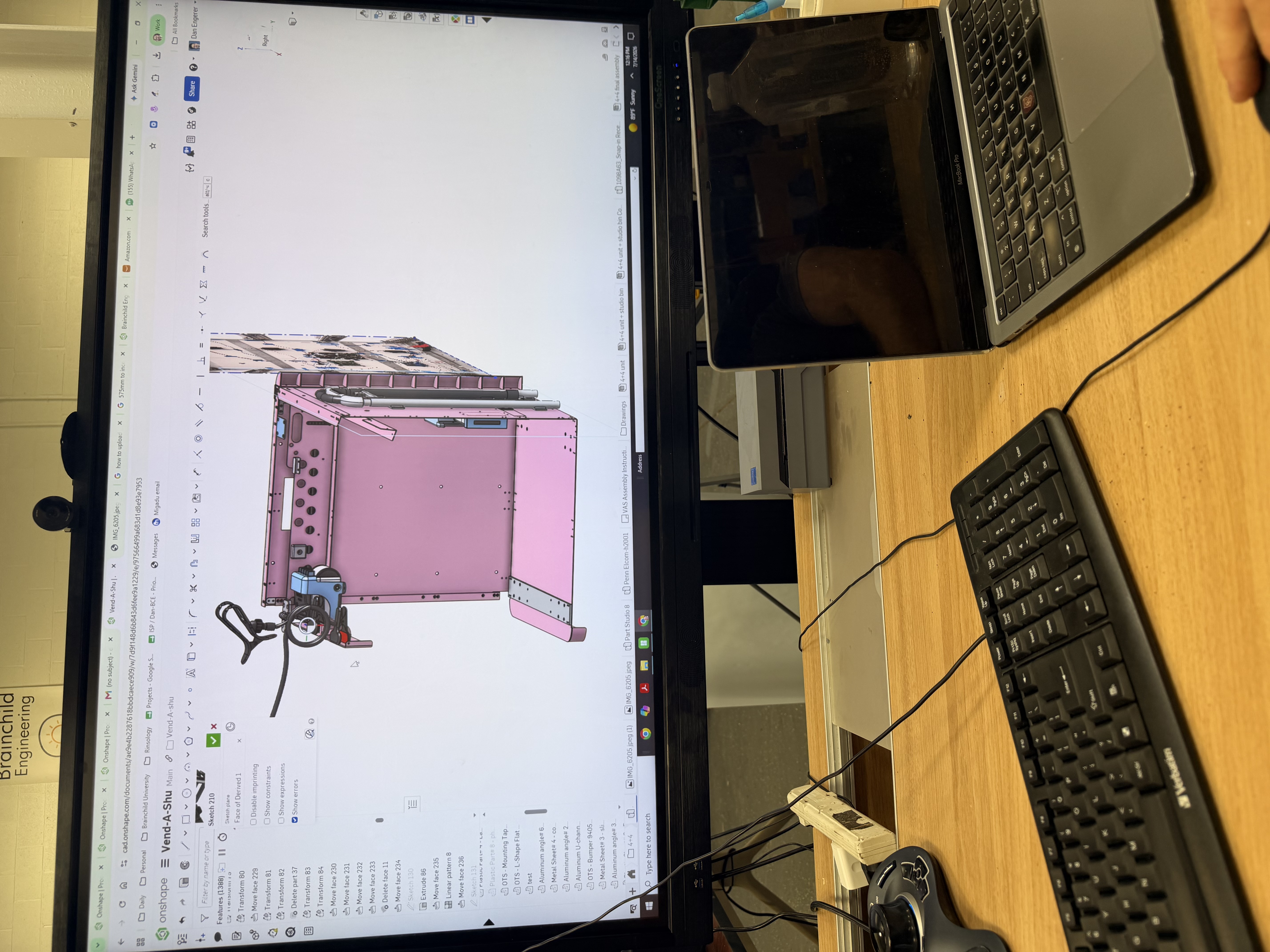

Vend-A-Shoe

Remote vending controller that lets a user pick a bin in a Next.js dashboard and trigger a physical dispense through a Supabase command queue and Raspberry Pi worker.

A cyber-physical vending pipeline instead of a dashboard-only app.; Frontend writes `device_commands` rows to Supabase with bin-specific actions (`dispense_bin_1..4`).; Raspberry Pi worker claims pending commands, executes servo movement script, then marks command status.; Servo control supports per-bin calibration; Bin 3 needed reduced duty cycle to prevent over-rotation.

Date: 2026
Signal: Embedded + Systems
Build stage: Cloud-to-hardware prototype running; calibration and reliability iteration
Stack: Next.js, TypeScript

Source code

embeddedfullstackiotsystemsintake

IMG_1485.MOV

Project notes

Highlights

What I built

Queue-based cloud-to-hardware architecture avoids exposing Pi directly to internet.
Command claiming flow reduces duplicate execution risk under polling.
Status lifecycle gives observability and post-failure diagnosis.
Includes deployment/runtime details; not just code that runs in dev.
`app/page.tsx`: command UI and Supabase insert flow for bin-specific dispense actions.

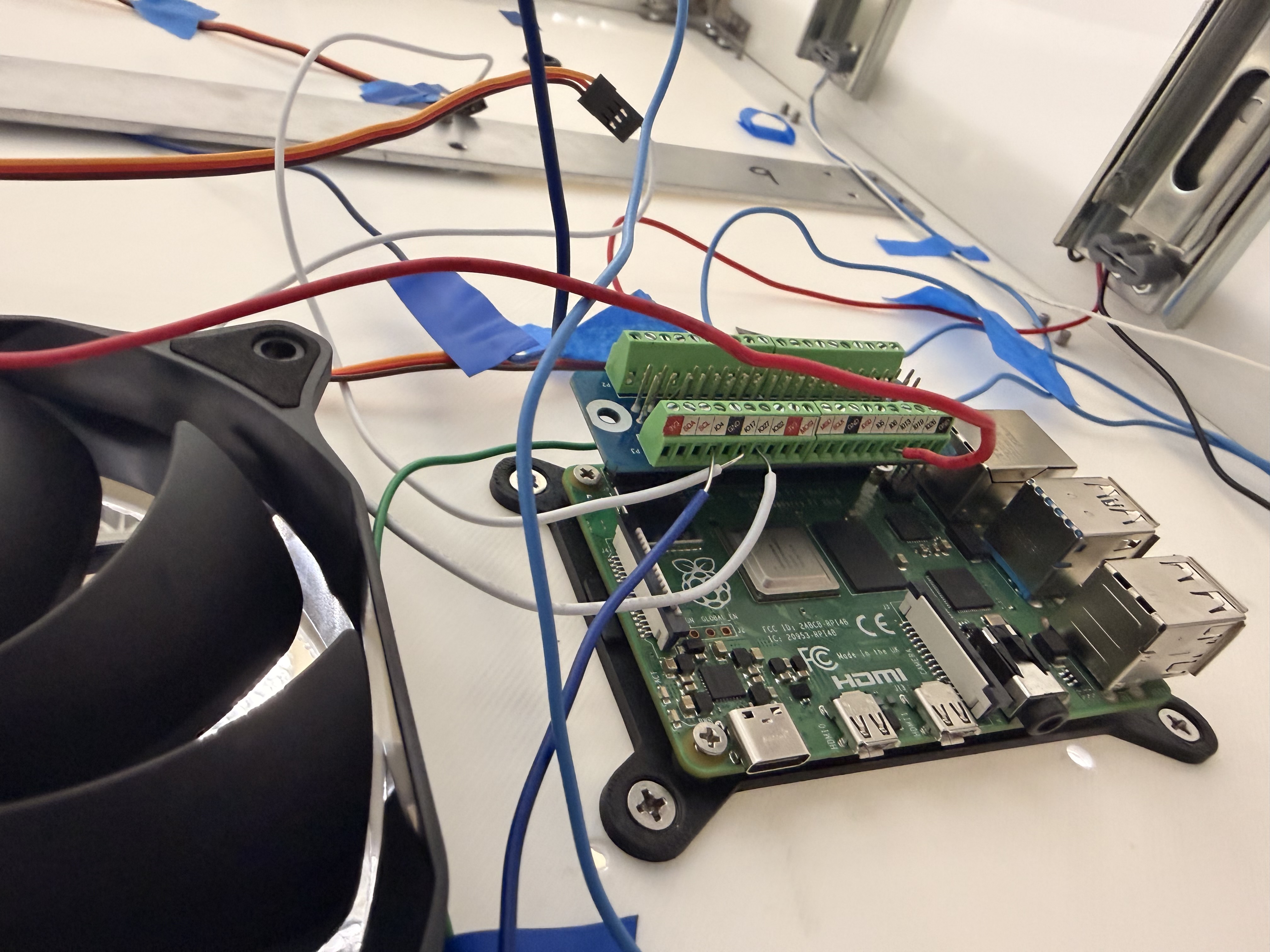

`pi_worker.py`: queue consumer loop, command claiming, action parsing, command status updates.

Architecture

How the system works

Frontend (`app/page.tsx`): creates queue command rows in Supabase.
Queue table (`supabase.sql`): tracks `pending`, `running`, `completed`, `failed`; indexed by status/date.
Worker (`pi_worker.py`): polls oldest pending command, claims atomically via status update, executes servo script, persists outcome.
Actuation (`servo_motor.py`): PWM sweep from home to target duty and back; target can vary by bin.
Runtime (`pi-worker.service`): persistent process with restart policy and env-based config.
UI writes command rows into `device_commands` through Supabase client.

Challenges

What made it hard

Reliable internet-triggered actuation with safe state transitions.

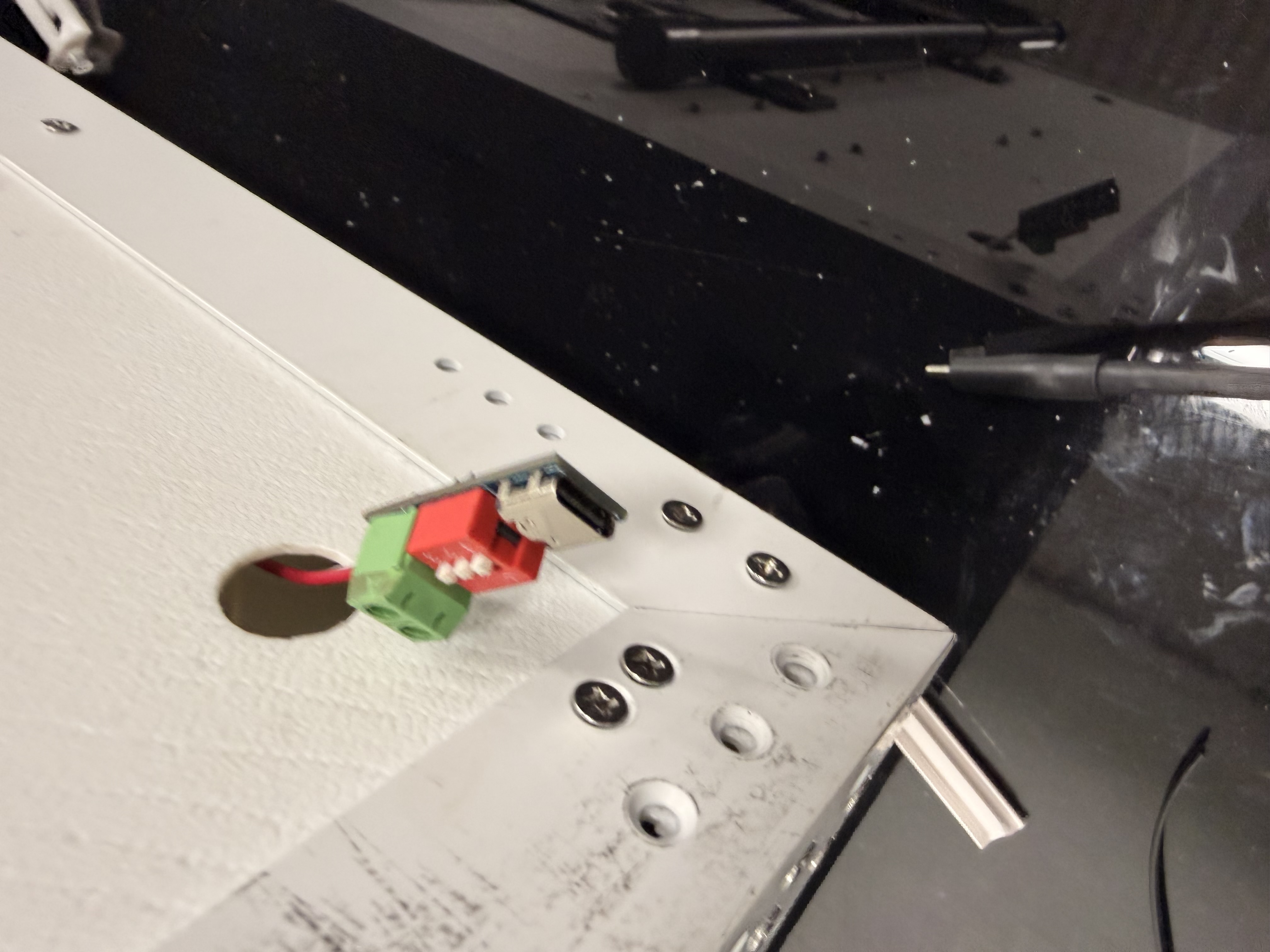

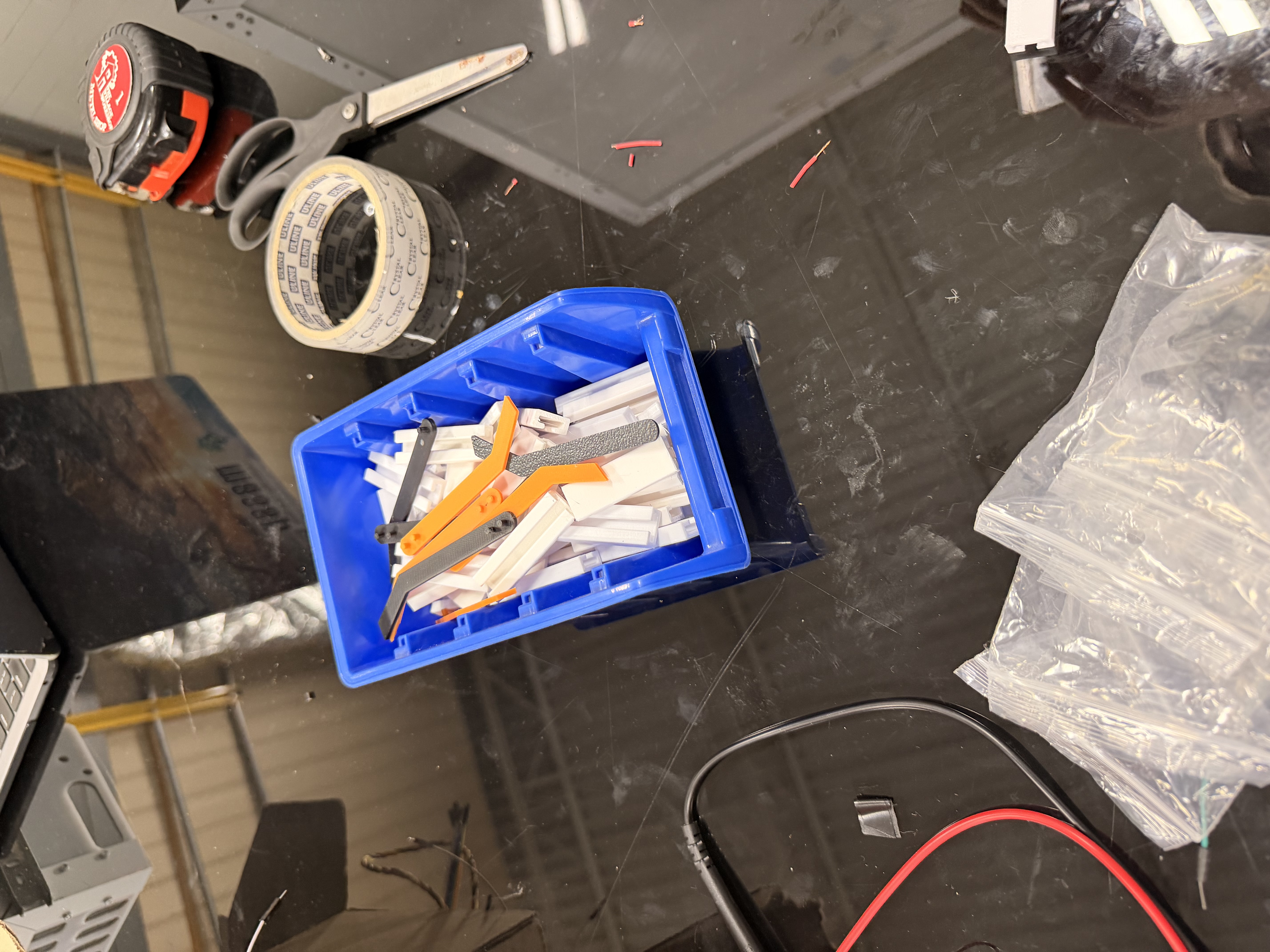

Servo power and motion tuning under real mechanical constraints.
Keeping remote command UX clear while hardware work happens asynchronously.

Lessons

What I learned

Physical systems punish "one size fits all" assumptions quickly.
Queue states matter; `running`/`failed` are not optional if you want to debug real hardware behavior.
Calibration hooks in software save time when mechanical behavior shifts.
Mechanical variance forces software-level calibration hooks.
State transitions make hardware workflows debuggable when remote.

Stack / materials

Next.jsTypeScriptSupabasePostgreSQLRaspberry Pi 4PythonRPi.GPIOsystemdReactTailwind CSSLucide iconsSupabase JS clientSupabase Postgres schema + policiesVercel deploy config

Milestone 1: single-bin command flow (`dispense`) from web app to Pi script.

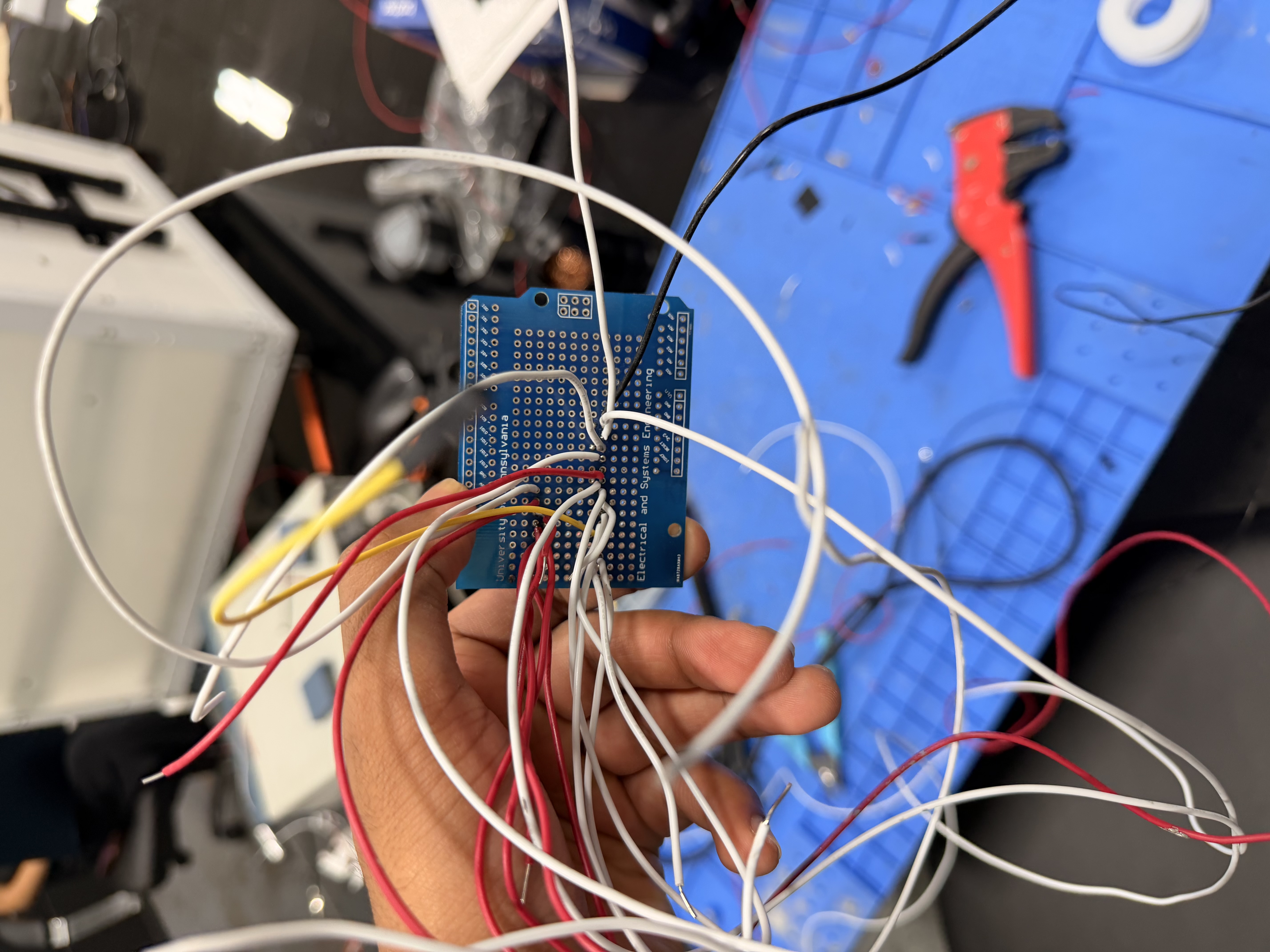

Milestone 2: upgraded to four-bin routing with GPIO mapping in `pi_worker.py`.
Milestone 3: calibrated Bin 3 with per-bin target duty override after over-travel.
Milestone 4: UI pass for responsive bin cards, status badges, and clearer loading/command feedback.
Decision: queue-based cloud-to-device architecture through Supabase
Why: avoids exposing Raspberry Pi directly to internet; keeps command history durable.
Tradeoff: introduces polling delay and status reconciliation complexity.
Decision: status transitions (`pending`, `running`, `completed`, `failed`)

What I would improve next

Add push-based updates instead of pure polling for faster UX.
Harden RLS and command auth model beyond MVP open policies.
Add sensor feedback to verify successful dispense actions.

Build log

Milestone 1: single-bin command flow (`dispense`) from web app to Pi script.
Milestone 2: upgraded to four-bin routing with GPIO mapping in `pi_worker.py`.
Milestone 3: calibrated Bin 3 with per-bin target duty override after over-travel.
Milestone 4: UI pass for responsive bin cards, status badges, and clearer loading/command feedback.
Decision: queue-based cloud-to-device architecture through Supabase
Why: avoids exposing Raspberry Pi directly to internet; keeps command history durable.
Tradeoff: introduces polling delay and status reconciliation complexity.

What broke; how I fixed it

Bin 3 over-rotated and caused unreliable dispense movement.
Root cause: one motion profile across all bins ignored mechanical variation.
Fix: added `BIN_TO_TARGET_DUTY` in worker; passed `--target-duty` into servo script for per-bin tuning.
Another issue: command model started single-lane; this broke scaling to multiple bins.
Fix: switched action parsing to `dispense_bin_n` and mapped bins to dedicated GPIO pins.
Bin 3 over-rotation was addressed with per-bin target duty override in worker + servo invocation.
System evolved from single `dispense` action to `dispense_bin_1..4` command routing with GPIO mapping.

What changed from v1 to now

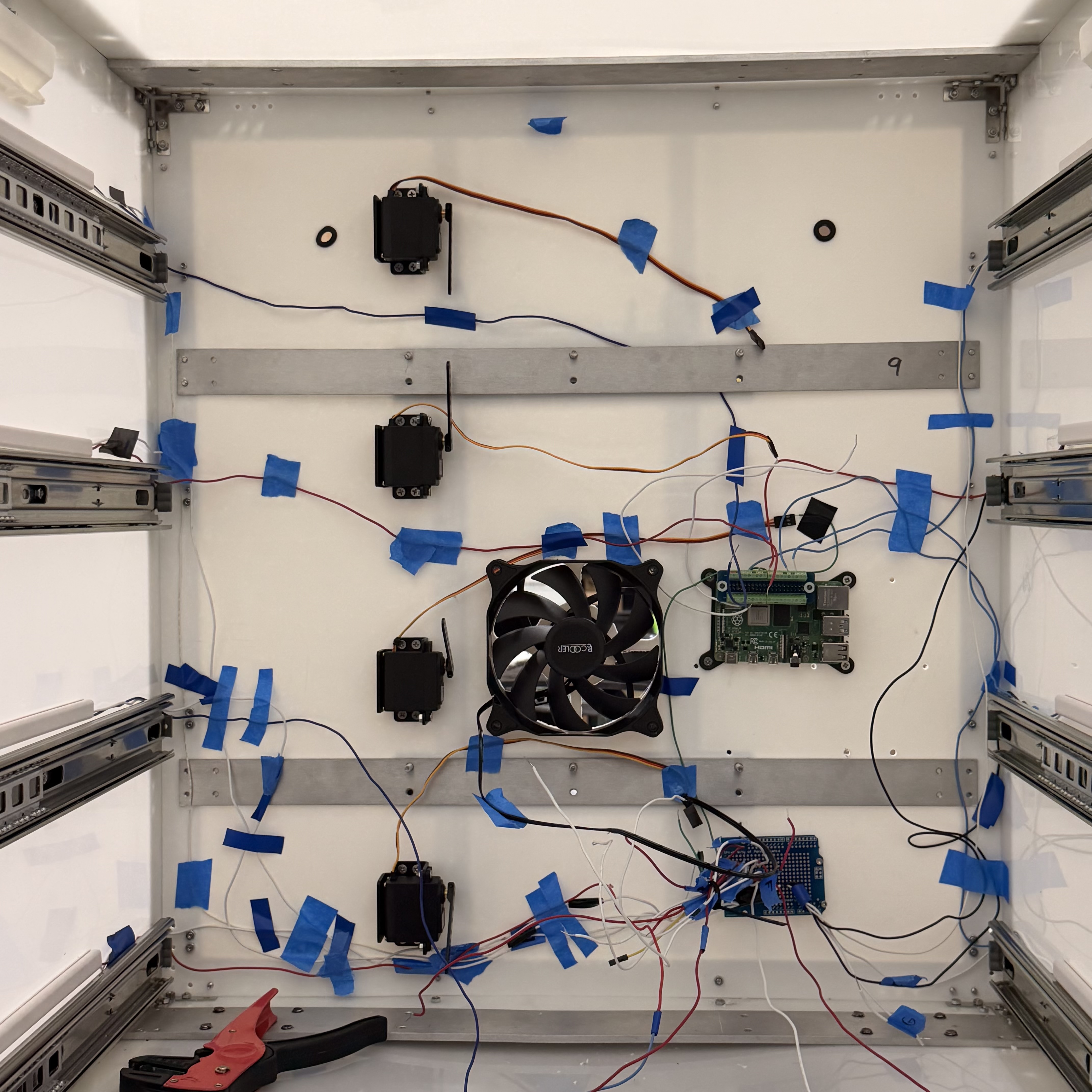

Current prototype supports browser-triggered, bin-specific dispense commands with observable queue states and Pi-based execution; it is a working cloud-to-hardware control loop with clear next steps around auth hardening, sensor feedback, and push updates.
